Fully Automatic Hot Staming Machine For Caps Top Surface

Fully Automatic Hot Staming Machine For Cap's Top Surface
Parameter:
1: Total consume Wattage: 2.2KW;
2. Stamping temperature Rnange:20-300°C;
3. Compress air Pressure:0.6MPA;
4. Products Diameter:DIA:15-34MM L:25-60MM
5. Max stamping Speed:4200pcs/hr
6. Outer dimension: 210*140*230CM
7. Power:380V/50HZ/3PHRASES
8. Net weight(kg) : 800KG
9. Goss Weight(KG):900KG

Advantages:
1. Silicon Rolling foil stamping system for assuring perfect stamping quality.
2: Fully automatic loading and feeding system for mostly degree of saving labor cost and most efficiency.
3: PLC control system, with no caps no print,counting,code setting, maintainance,temperature control, automatic alarming system etc.
4: International Famous pneumatic parts included Japan SMC cylinder, valves, Germany OMERON sensors etc.
5: Japan and Taiwan famous brand DEFOILER motor,STEPPER MOTOR, vacuum pump motor etc.6: SCHNEIDER OR PANOSONIC key eletrical components
7. Safe protection device installed.
8: Guarrantee: 1 years
9: Free techical and operation Training available.

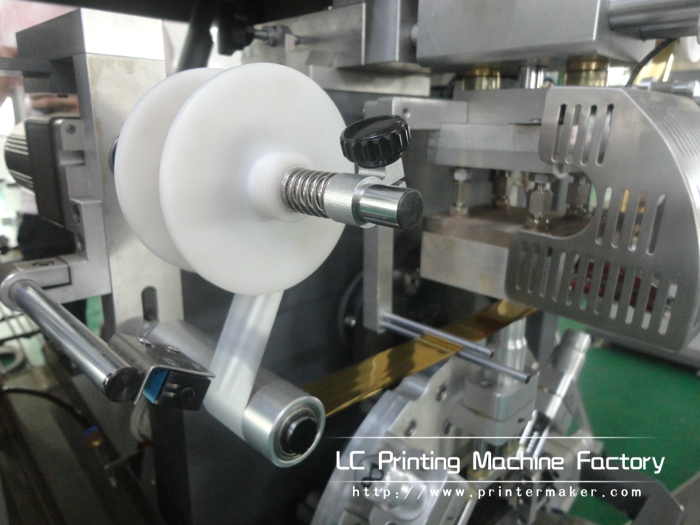

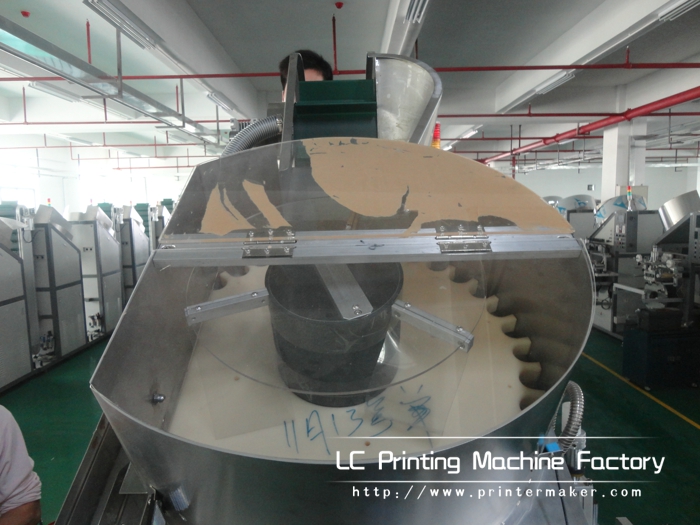

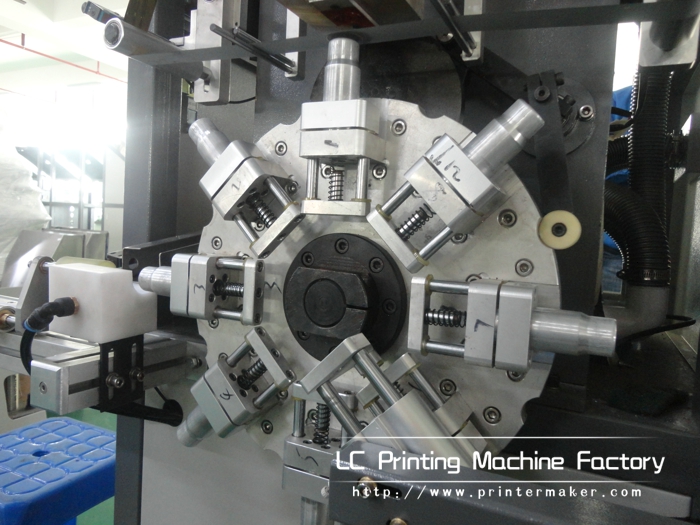

Fully Automatic Hot Staming Machine For Caps Top Surface Images
