Film Hot Foil Stamping Machine

Film Hot Foil Stamping Machine
Price Terms:FOB GuangZhou
Payment Terms:TT/LC
Packing:Wooden case
Lead Time:Within 35 days
Standards Certificate:CE
Technical Parameter:1 Maximum stamping width: 800 MM
2 Maximum stamping area:300 × 250MM
3 Table size: 900mm×500mm
4 Maximum printing speed: 5M/min;
5 Transfer time range:0-99 seconds;
6 Reeling foil time range:0-99 seconds;
7 Stamping head down stroke:60mm;
8 Maximum stamping pressure:1000kg;
9 Heat Wattage: 4 * 500w = 2000w;
10 Power supply: 3 phase 380V;
11 Drive motor power: 1000W.
Stamping Head:drive Electron -drive
Foil collecting method:Morot-drive , Collecting time adjustable
Temperature controlling:Heating tube heat up,Automatically temperature controlling,temperature free setting
Size of stamping plate and table:300×250mm/ 500×900mm.
Press adjustment way:Up-down of Stamping head
Working table:Micro-adjustment device, Sensor installed
Usage:Roller Paper Gilding, Roller film Bronzing.

Production Advantage:
1.Microcomputer control, touch screen operating system.
2.Four Figure counter build in, high degree of automation.
3 High-precision tension control mechanism, film conveying smooth, uniform tension.
4 Stamping head position can be flexibly adjusted to any position in the film stamping;
5 Automatic temperature control system, precise and accurate temperature control;
6 Transfer time, Collecting time, temperature control to adjust the settings have been several significant ways;
7 High-precision electric Sensor control device, precise control of stamping pitch;
8 Stepless speed adjustment, stable and reliable machine operation speed;
9 Automatic alignment device, receives the paper part of the automatic collection;
10 High-precision stainless steel coil roll, stable and lasting life;
11 Rolls for products such as roll, roll film, the continuous self-adhesive label gilt.

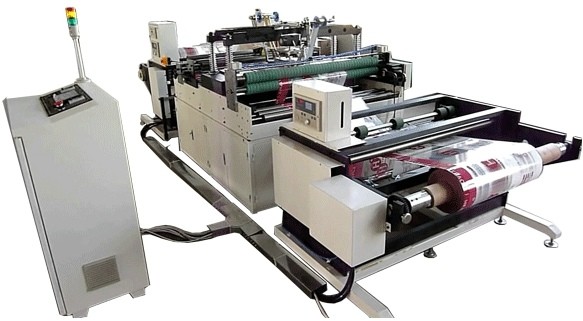

Film Hot Foil Stamping Machine Images
