Cylindrical Hot Stamping Machine

Cylindrical Hot Stamping Machine
Designed for cone cups to gild , Special curved conduit working table installed to ensure diffrent shape cups , Vertical pressure design ensure stabilitation stamping process. Widely used in the field of cosmetic package, Gifts, Toys etc.

Price Terms︰ FOB GuangZhou
Payment Terms︰ T/T, LC
Packing︰ Wooden case
Lead Time︰ Within 3 days
Standards Certificate︰ ISO9001-2000
Power Supply︰ 220V/110V/50HZ/60HZ/1-Phase
Colour Painted ︰ White&Blue

Specifications︰
1.Size of stamping plate: 160×360 mm;
2.Heater Wattage: 2000W;
3.Stamping height adjustable range =80 mm;
4.Max. stamping diameter: For whole circle: 90mm;
5.Stamping temperature adjustable range: 0 - 300oC;
6.Stamping foil pulling length: =400 mm;
7.Stroke of stamping plate: 53 mm;
8.Max. stamping pressure: 600 kgf (7bar);
9.Max. stamping speed: 600 pcs/hr;
10.Air consumption: 100 litre/min;
11.Dimensions: 700 x 850 x 1600 mm;
12.Weight: 175 Kg;

Advantages︰
1. Relay programmecontrol to operate ;
2. Capable of adjusting the stamping pressure, the temperature and the speed;
3. Temperature stabilization of temperture controller ensure stamping quality;
4. Worktable slight adjustment ensure precision stamping;
5. Automatic foil feeding and collecting;
6. Safe protection device installed;
7. The stamping head height adjustable;
8. Special curved design to gild cone cups.

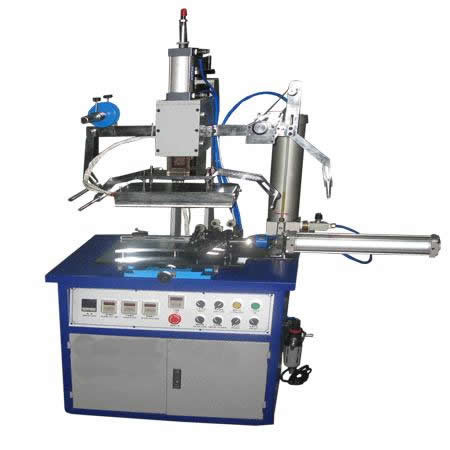

Cylindrical Hot Stamping Machine Images
