Side Way Sealed Cup Pad Printer

Name: Side Way Sealed Cup Pad Printer
Brand: easy
Price: 1 USD

Place of Origin : China

Brand Name : easy

Model Number : M1-650

Certification : CE

Packaging Details : woodencase

Delivery Time : 3 days

Payment Terms : TT

Supply Ability : 1000PCS/Month

MOQ : 1 PC

Contact Now

Side Way Sealed Cup Pad Printer

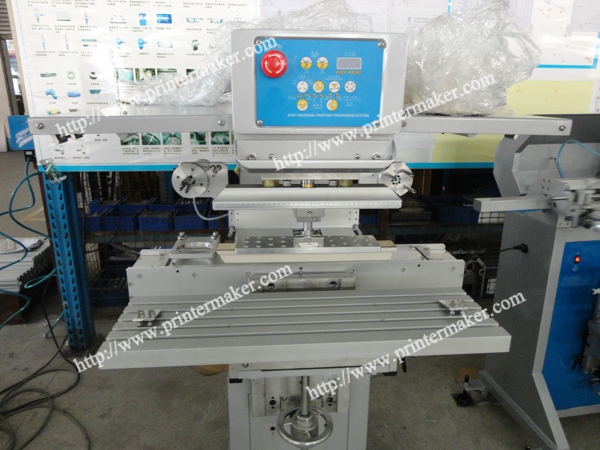

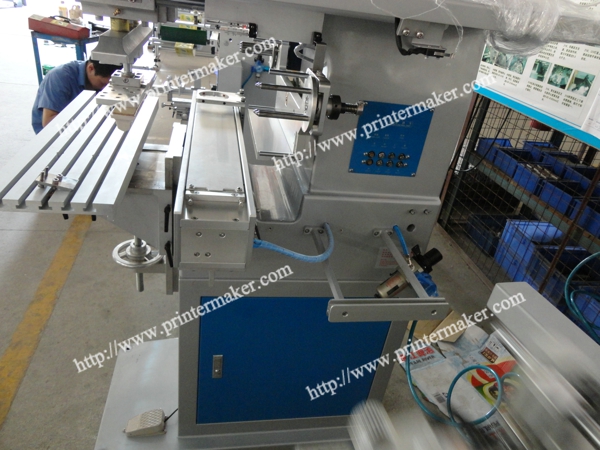

M1-650 is use for some pad printing special parts, too lenth, too width, ink cup could transverse flow moving, so that, a most big size pars it is can pad printing also.
The transverse closed cup with a print area of 85 mm diameter. Is an ideal for synchronizing with our rotary indexing systems. It is ideal for Printing onto rulers, catheters, syringes, pen clips, pen barrels, reflector tubes, electrical, electronic housings, badminton rackets, pvc/rubber pipes and pvc casing etc. The system is capable to print images as long as o 530-550 mm x 15-20 mm Application specific synchronization and mounting packages can be tailor made to meet your specific requirements.
The model comes with a standard working table for product up-down setting and a fabricated base as a standard feature

1．Model NO ：M1-650
2．operation ：pneumatic
3．Printing Colors：1
4. Max. printing area :90x600 mm
5．Plate area 650*150 mm2
6．Sealed ink cup diameter：￠90mm
7. Max printing speed：1600PCS/H
8．Wattage：220V/ 50HZ 110V/60HZ
9．Air pressure: 6 Bar
10.Machine size:122x92x138cm(LxWxH)
11.Machine weight ：215kg
Free Fitting :
1.one pcs pad steel plate
2.one pcs silicone rubber pad
3.one pcs jig
4.tooling box
5.Englishi specifications
Price Terms︰ FOB GUANGZHOU
Payment Terms︰ T/T WESTUNION
Packing︰ WOODEN CASE
Lead Time︰ 5 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Cubic Meter ︰ 2.2
Machines Fittings ︰ INK CUPS , SILICONE PADS , STEEL PLATE
Gross Weight︰ 270KG
Main Parts︰ CYLINDER MADE BY GERMANY
Application area︰ LENGTH SHAPE PRODUCTS

Side Way Sealed Cup Pad Printer
